Standardized quarter-brick, wall-mount, server PSU, and custom turnkey PCBA assemblies for worldwide OEM deployment.

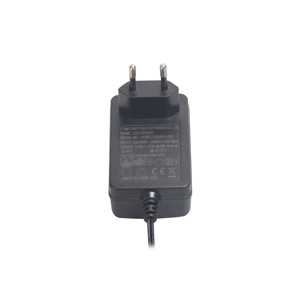

Compact wall-mount AC-DC converter featuring universal input voltage, low standby power consumption (<75mW), and integrated short-circuit protection.

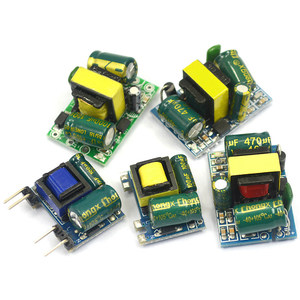

Isolated step-down voltage regulator module engineered for embedded PCB electronics, offering dual output channels and active ripple noise suppression.

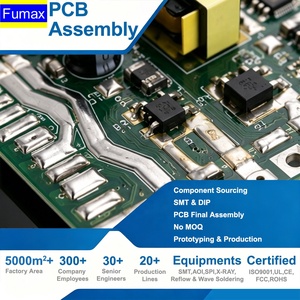

Custom heavy copper PCBA power assembly optimized for high-current thermal dissipation, multi-stage EMI filter networks, and rugged industrial enclosures.

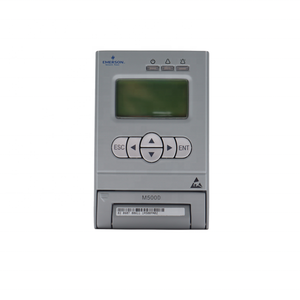

Telecom-grade high-efficiency rectifier module featuring digital monitoring telemetries, hot-swappable architecture, and fault isolation for 5G towers.

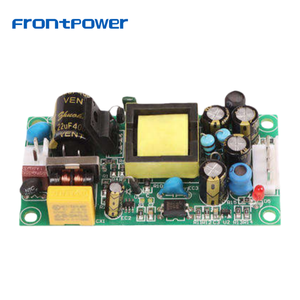

Wide output spectrum switching power supply board suitable for industrial automation, featuring flexible OEM custom power sizing from 24W to 500W.

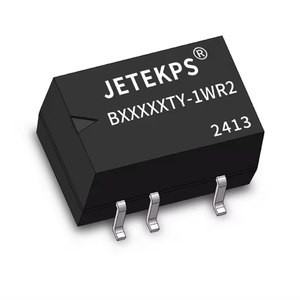

Sub-miniature SMD surface-mount isolated converter designed for micro-controller isolation, sensor interfaces, and RS-485 transceiver bus conditioning.

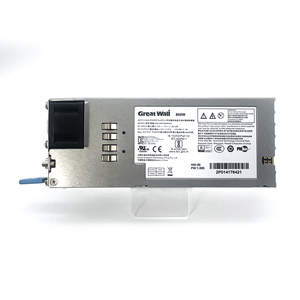

Enterprise data center server power module with redundant power factor correction (PFC), PMBus status telemetry, and platinum-grade efficiency metrics.

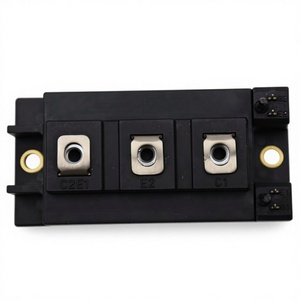

High-power insulated-gate bipolar transistor (IGBT) module designed for motor control inverters, induction heating circuits, and high-frequency power conversion stages.
An authoritative technical analysis on overcoming thermal degradation, EMI compliance barriers, and switching loss in high-density power conversion systems.
Traditional secondary-side diode rectification introduces fixed forward voltage drops ($V_F \approx 0.5\text{V}$ to $1.0\text{V}$), resulting in catastrophic conduction loss at high current output levels. China’s premier manufacturing plants have fully transitioned to Synchronous Rectification (SR) topology using actively controlled low-$R_{DS(on)}$ MOSFETs. Integrated with Active Clamp Forward or LLC Resonant topologies, switching losses are virtually eliminated during Zero Voltage Switching (ZVS) transitions, driving module efficiency past 96.5%.
Heat dissipation is the primary governing factor in MTBF decay. Modern module topologies employ Direct Bonded Copper (DBC) substrates paired with heavy-copper PCB layouts (up to 10 oz copper thickness). Combined with thermally conductive aluminum substrate baseplates and planar transformers, internal thermal resistance ($\theta_{JC}$) is reduced by up to 60%, permitting continuous operation under conduction-cooled chassis conditions without forced air movement.
Industrial, medical, and defense platforms demand rigorous isolation integrity. Advanced power modules utilize multi-layer isolation barriers engineered to withstand transient surges over 1500VDC to 4000VAC. Advanced differential mode and common mode internal filtering networks mitigate conducted interference, allowing direct compliance with stringent standards such as MIL-STD-461, RTCA DO-160G, and EN 50155 for railway systems.
Quantitative benchmarks demonstrating the information gain achieved through high-frequency Wide Bandgap (WBG) technology.
| Performance Parameter | Standard Commercial Module | Advanced GaN/SiC Power Module | Military & Defense Field-Grade Module |
|---|---|---|---|
| Switching Frequency | 60 kHz – 150 kHz | 500 kHz – 2.2 MHz | 250 kHz – 600 kHz |
| Peak Efficiency | 82% – 88% | 94% – 97% | 91% – 95% |
| Power Density ($W/in^3$) | 15 – 35 W/in³ | 120 – 250 W/in³ | 80 – 140 W/in³ |
| Operating Temp Range | -20°C to +70°C | -40°C to +105°C | -55°C to +125°C |
| Isolation Voltage (DC) | 1000 VDC | 1500 VDC – 3000 VDC | 2250 VDC – 4000 VAC |
| Thermal Mitigation | Extruded Heatsink + Fan Required | Aluminum Baseplate Conduction | Full Encapsulated Baseplate + DBC |
Key technological shifts driving B2B power conversion procurement across AI datacenters, telecommunications, electric mobility, and aerospace programs.
Silicon power devices are approaching their physical operational limits. Sourcing decisions over the next five years will heavily lean toward Gallium Nitride (GaN) and Silicon Carbide (SiC) switching components. WBG devices operate at significantly higher switching speeds with minimal thermal loss, allowing power supply dimensions to shrink by 40-50% while accommodating higher voltage thresholds in server racks and EV charging stations.
Analog feedback loops are rapidly being supplemented by digital signal processors (DSPs) supporting the PMBus™ (Power Management Bus) protocol. Modern system engineers require real-time telemetry metrics—including input/output voltage status, current draw monitoring, operating temperature, and fault logging—to enable predictive maintenance algorithms in mission-critical datacenters and 5G base station deployments.
Geopolitical turbulence and component lead-time volatility require global enterprises to establish certified supply channels in China with direct turnkey PCBA capabilities. Modern procurement strategies prioritize Chinese factories that maintain fully integrated supply chains—from raw laminate fabrication and magnetic core winding to automated Surface Mount Technology (SMT) and in-house environmental screening.
Combining 25+ years of power electronics development expertise with rigorous aerospace-grade manufacturing disciplines.
Our engineering team delivers end-to-end design flexibility—from custom mechanical brick pinouts and heavy copper multi-layer board layouts to specialized voltage trimming ranges. We transform complex power specifications into fully functional, high-yield production models within rapid prototyping cycles.
Zero-defect manufacturing policies guide our production floor. Every power module undergoes automated 3D Optical Inspection (AOI), In-Circuit Testing (ICT), dynamic full-load burn-in under elevated ambient temperatures, and 100% high-potential (Hi-Pot) safety isolation validation prior to shipment.
We support long-lifecycle industrial and defense programs spanning decades. By utilizing strategic component component derating and maintaining direct component manufacturer alliances, we provide formal form-fit-function replacement guarantees and advance notice of component lifecycles.
Addressing common technical, qualification, and logistics inquiries from B2B system designers and sourcing managers.
Synchronous rectification replaces traditional diode rectifiers on the secondary winding with ultra-low resistance MOSFETs. This eliminates high diode forward voltage drops ($V_F$), lowering internal thermal dissipation by up to 50%. The resulting reduction in heat enables higher power density, smaller heatsinks, and significantly extended field operating life (MTBF) under conduction-cooled conditions.
Our heavy-duty industrial and defense power modules are designed and tested to comply with major global standards, including MIL-STD-704 (A-F) for aircraft power quality, MIL-STD-461 (C-F) for EMI/EMC compliance, MIL-STD-1275 for vehicle 28V DC inputs, EN 50155 for railway rolling stock electronics, RTCA DO-160G for airborne hardware, and IEC/EN 60601-1 4th Edition for medical-grade isolation safety.
Our engineering teams design power modules using high thermal conductivity materials, including aluminum baseplates, planar magnetics, thermal conductive epoxy potting compounds, and heavy-copper PCBs. Detailed thermal derating curves are provided for every module family, establishing exact safe operating envelopes across ambient temperature ranges from -40°C up to +105°C baseplate temperatures without requiring external cooling fans.
We offer comprehensive turnkey OEM/ODM engineering services. Customers can specify non-standard input voltage windows, custom mechanical pinout layouts, isolated telemetry signals (PMBus/I2C), conformal coatings for harsh environments, and specific safety isolation levels (e.g., 2×MOPP for medical equipment or 4000V DC high isolation).
Standard off-the-shelf samples ship within 3 to 5 business days. Mass production production orders typically feature a lead time of 4 to 6 weeks. Every production lot includes full component lot traceability, certificates of conformance (RoHS/REACH compliance), and individual factory test data reports archived for auditing purposes.
Submit your electrical specifications, thermal constraints, and compliance requirements to our senior application engineering team for rapid derating analysis, custom quotes, and sample evaluations.
